Glycerin filled pressure gauge

Product /Glycerin filled pressure gauge

Mahalaxmi Instruments offer "MASTER" make Glycerin filled pressure gauges. In Glycerin filled pressure gauges we filled it with lubricant like oil or glycerin so that it can be protected from environmental conditions and vibrations. Because of this we can increase the life of pressure gauges.

By this mechanism accuracy of glycerin filled pressure gauge is more than the other regular pressure gauges. These gauges are subjected to aggressive environmental condition, Vibration proof, suitable for any type Burdens.


Specifications

Dial Sizes 63mm, 100mm, 150mm, 200mm, & 250mm
Accuracy +1 to 2% F.S.D
Ranges/Scales Std. Ranges from 0-1 upto 700 bar or kg/cm2 (10000 psi)
Case & Ring SS 304, SS 316 ( Byonet type )
Socket Brass, SS 304, SS 316, SS 316L
Bourdon Tube Brass, SS 304, SS 316, SS 316L
Movement Brass, SS 304
OverPressure Limit 1.3 times of Full Scale Pressure
Joints Arc Argon welded, Solder, Silver Breasing
Window Glass
Pointer Micro zero adjustable, plain pointer
Connections 1/8″, 1/4″, 3/8″, ?” BSP or NPT
Mounting Bottom, Bottom Surface, Back, Back Panel, Back Clamp
Options Available Glycerin Filling
Customized Dials – scales, ranges, OEM logos

Application

    Glycerin filled pressure gauges are commonly used in places where vibrations are more. It reduces flickering of pointer in such cases due to oil filled. applications with vibrations.

  • Hydraulic Presses
  • Pumps
  • Industrial Power Plants
  • Marine engines
  • Air Compressor

Features

  • Pressure Ranges up to 700kg/cm,Vacuum Compound Ranges
  • Dial Size 63mm, 100mm ,150mm, 200mm & 250mm
  • Case & Bazel(IP-65) Snap Action Bayonet Type
  • Wetted Parts Stainless steel

Mounting Information

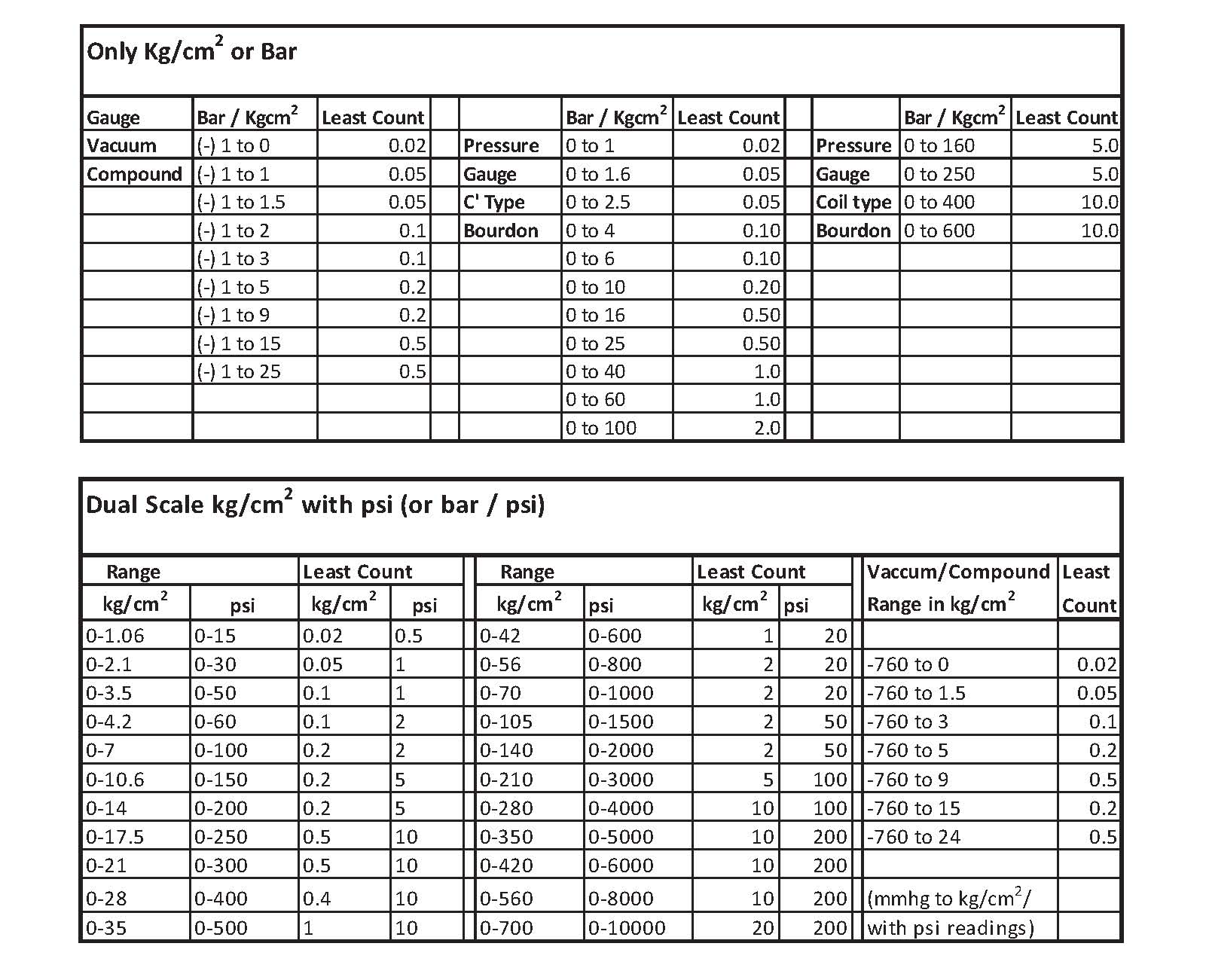

Range Selection
