Bourdon Sensing Pressure Gauge
Mahalaxmi Instruments offer "MASTER" make Bourdon Sensing pressure gauges. These types of pressure gauges are mainly using in power Generation, food industry, Instrument Manufacturers, Original Equipment Manufacturers,
Original Equipment Manufacturers, Pharmaceutical, oil Exploration / refineries Petrochemicals, Pulp & Paper, Metallurgy, Cement, Synthetic Fibre, Fertiliser and other Industrial Process Applications.
Specifications
| Dial Sizes | (40mm, 50mm, 63mm, 100mm, 150mm, 250mm) |
| Accuracy | ?1% to 2% F.S.D |
| Ranges | Std. Ranges from 0-1 upto 700 bar or kg/cm2 (10000 psi) & Vacuum, Compound Ranges |
| Case & Ring | MS Black Coated, SS 304, SS 316 ( Pressed type / Byonet type ) |
| Socket | Brass, SS 304, SS 316, SS 316L, Monal, SS 316TI |
| Bourdon Tube | Brass, SS 304, SS 316, SS 316L, Monal, SS 316TI |
| ‘C’ Shaped Tube upto 70 Bar | |
| Coil Shaped Tube Above 70 Bar | |
| Movement | SS 304 |
| OverPressure Limit | 1.3 times of Full Scale Pressure |
| Joints | Arc Argon welded, Solder, Silver Breasing |
| Window | Glass |
| Pointer | Micro zero adjustable, plain pointer |
| Connections | 1/8″, 1/4″, 3/8″, ?” BSP or NPT |
| Mounting | Bottom, Bottom Surface, Back, Back Panel, Back Clamp |
| Options Available | Glycerin Filling |
| Customized Dials – scales, ranges, OEM logos | |
| Cleaning for Oxygen Application |

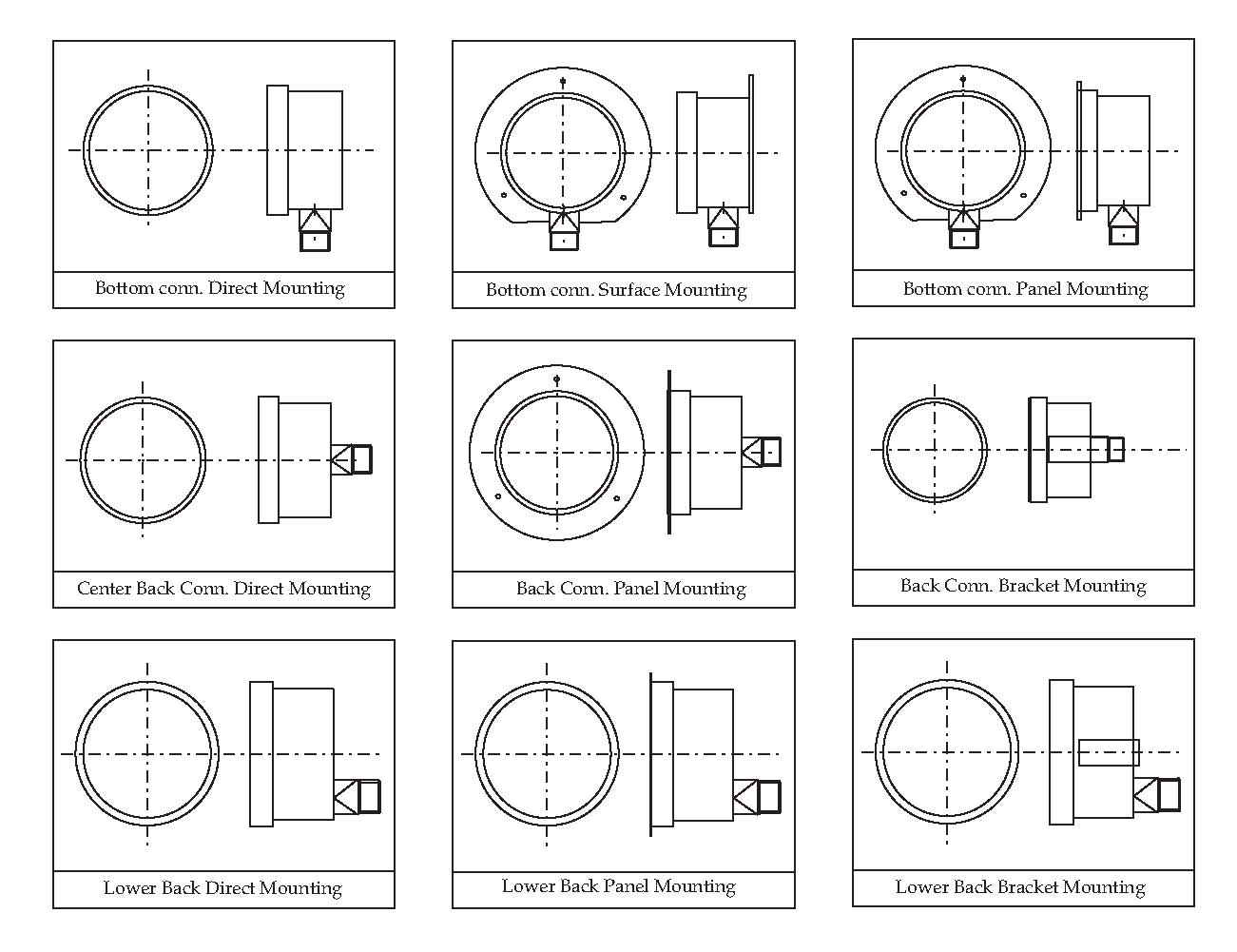

Mounting Information

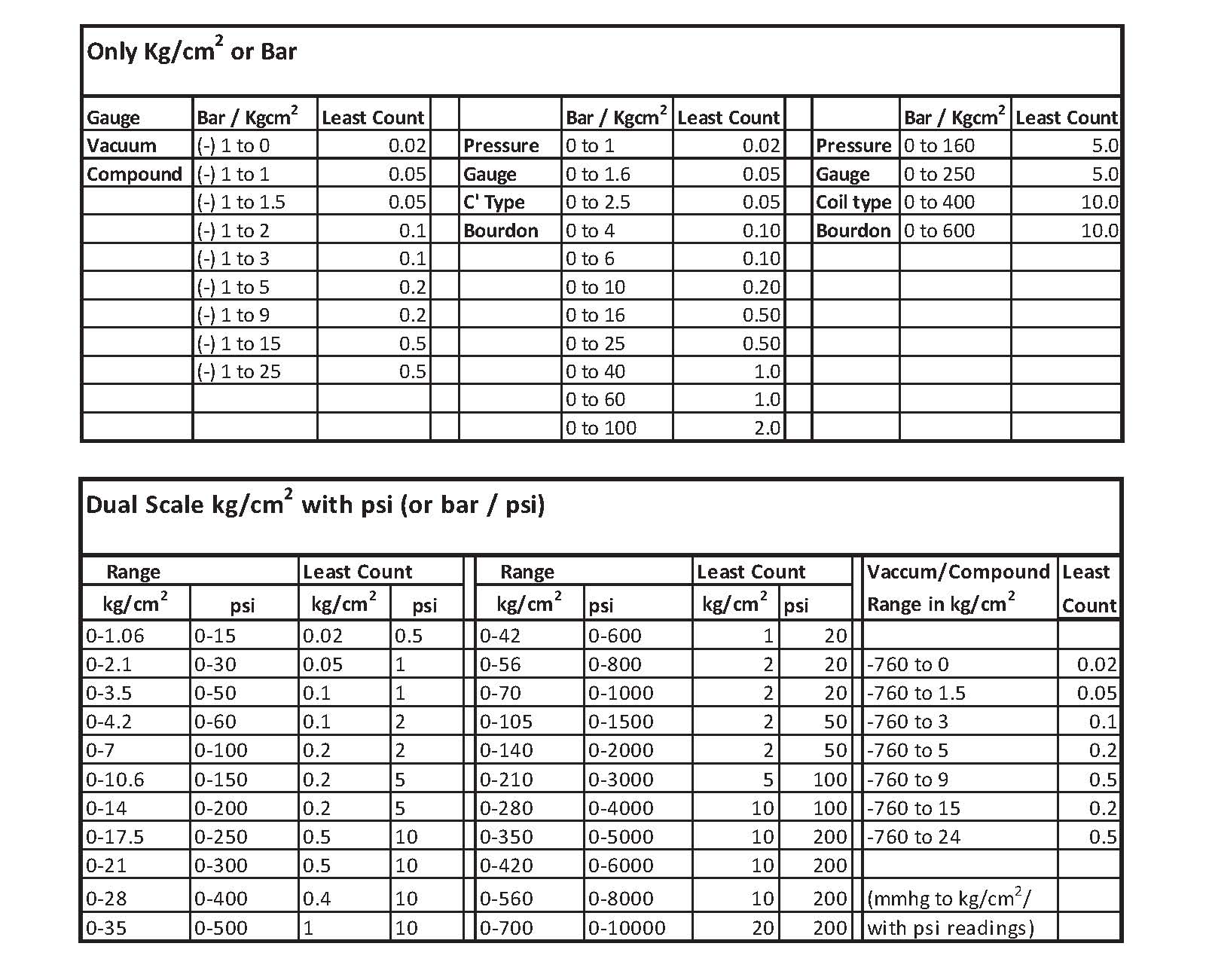

Range Selection
How to Order / Inquire :
Please advise the below
- 1) dial size
- 2) connection
- 3) mounting
- 4) pressure range
- 5) application media
- 6) or any other special requirement
