Hydrolic Pressure Gauge
Mahalaxmi Instruments offer "MASTER" make Hydraulic pressure gauge. We are one of the leading manufacturers of Hydraulic Pressure Gauges in India. Hydraulic Pressure Gauges are devices used for checking pressure in various Hydraulic and mechanical systems. The Hydraulic Pressure Gauges are manufactured using high quality stainless steel case and bourdon, the gauge comprises cast aluminium or polypropylene case material.
The glycerine filled Hydraulic Pressure Gauges enable smooth pointer movement even in conditions were heavy vibrations are.
Specifications
| Dial Sizes | (40mm, 50mm, 63mm, 100mm, 150mm, 250mm) |
| Accuracy | +1% to 2% F.S.D |
| Ranges | Std. Ranges upto 700 bar or kg/cm2 (10000 psi) |
| Case & Ring | MS Black Coated, SS 304, SS 316 ( Pressed type / Byonet type ) |
| Socket | Brass, SS 304, SS 316, SS 316L, Monal, SS 316TI
'C' Shaped Tube upto 70 Bar Coil Shaped Tube Above 70 Bar |
| Movement | SS 304 |
| OverPressure Limit | 1.3 times of Full Scale Pressure |
| Joints | Arc Argon welded, Solder, Silver Breasing |
| Window | Glass |
| Pointer | Plexiglass |
| Pointer | Micro zero adjustable, plain pointer |
| Connections | 1/8", 1/4", 3/8", 1" BSP or NPT |
| Mounting | Bottom, Bottom Surface, Back, Back Panel, Back Clamp |
| Options Available | Glycerin Filling
Customized Dials - scales, ranges, OEM logos Cleaning for Oxygen Application |

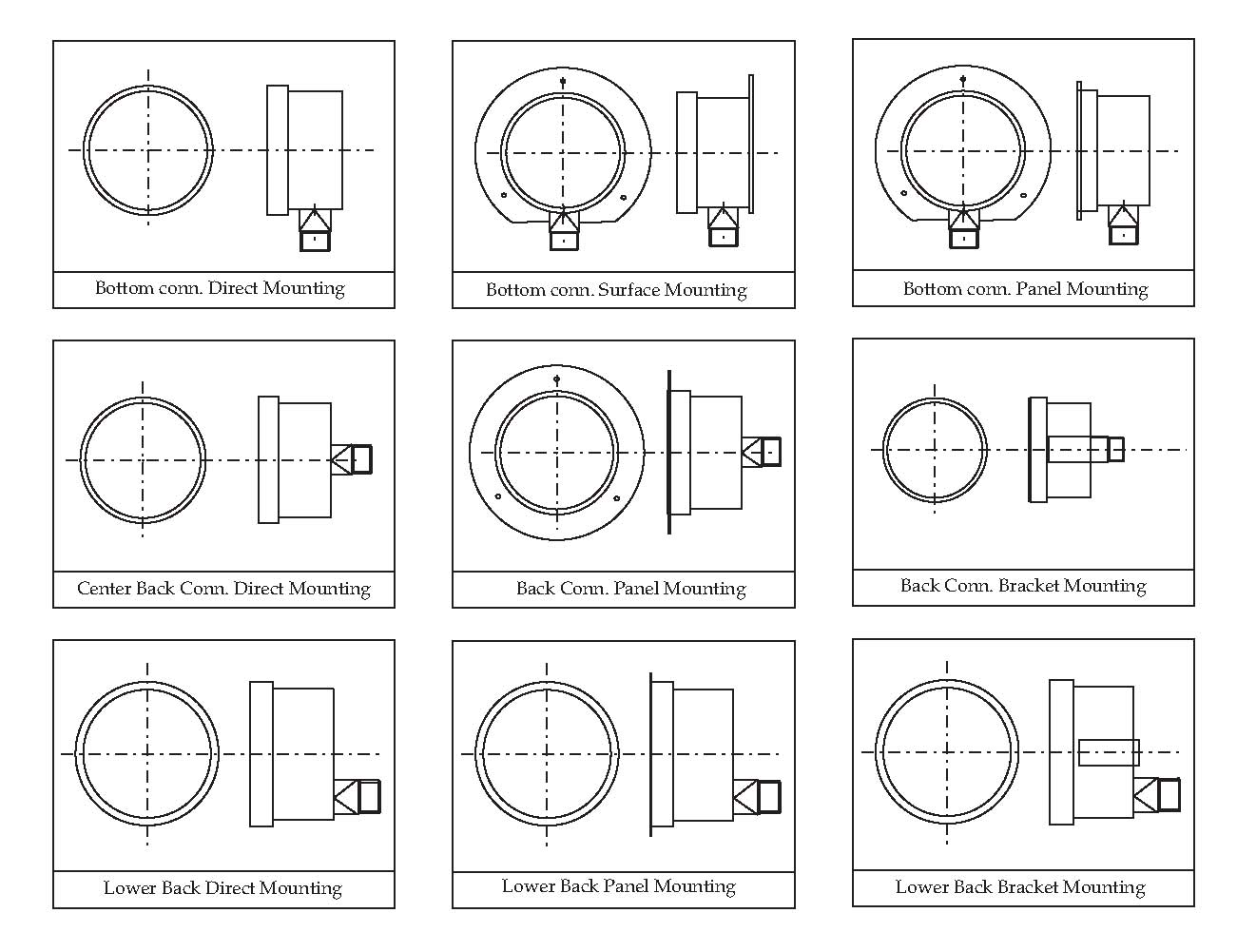

Mounting Information
How to Order / Inquire :
-
Please advise the below
- 1) dial size
- 2) connection
- 3) mounting
- 4) pressure range
- 5) application media
- 6) or any other special requirement
