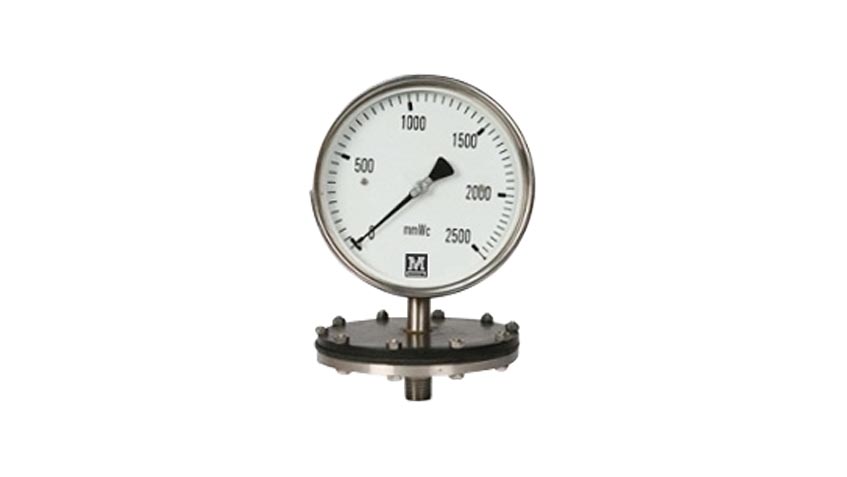

Low Pressure Diaphragm Pressure Gauge
Mahalaxmi Instruments offer "MASTER" make Low Pressure Diaphragm Pressure Gauges.
Low Pressure Diaphragm Pressure Gauges are widely acknowledged for durability, efficiency and accuracy these are suitable for low-pressure measurement of commercial heating, level measurement, gases distribution, dry and gaseous media, and filtration system. Available in dial Size of 100mm & 150mm, the dial is aluminum white painted with 270 degree black scale marking.
Specifications
| Dial Sizes | 100mm, 150mm |
| Accuracy | +1.6% F.S.D |
| Ranges | Low Pressure: 400mmwc upto 6000mmwc / 600mbar
High Pressure: 1 bar upto 25 bar / kg/cm2 |
| Case & Ring | SS 304, SS 316 ( Byonet type ) |
| Socket | SS 304, SS 316, SS 316L, Monal, SS 316TI |
| Sensing Element | Diaphragm ( SS 304, SS 316 ) |
| Over Pressure Limit | 1.3 times of Full Scale Pressure |
| Movement | SS 304 |
| Top Chamber | SS304 / SS316 |
| Bottom Chamber | SS304 / SS316 |
| Pointer | Micro Zero adjustable, plain pointer |
| Wetted Parts | SS 304, SS 316 |
| Window | Flexiglass |
| Pointer | Micro zero adjustable |
| Connections | 3/8" or 1" BSP/NPT |
| Mounting | Direct Bottom Entry |
| Options available: | Glycerin Filling: Taflon Coated Diaphragm Taflon Lining for Bottom Flange Customized Dials - scales, ranges, OEM logos |
Application
- Level indication
- Filter monitoring
- Medical & vacuum technology
- Environment & heating engineering
